CO2 Gas Detector (with bracket)

MK9 CO₂ Safety system

The Mk9 CO₂ sensor is the latest generation of CO₂ Safety Systems and has replaced the LogiCO2 MkVII CO₂ Sensor System. A large display, functional design and revolutionary language functionalities are some of the new features of the MK9 CO₂ Safety System. The display alternates between actual CO₂ concentration (0.0%- 6,7%), TWA (ppm) and temperature (°C or°F), (if temperature alarm is activated for cold room applications).

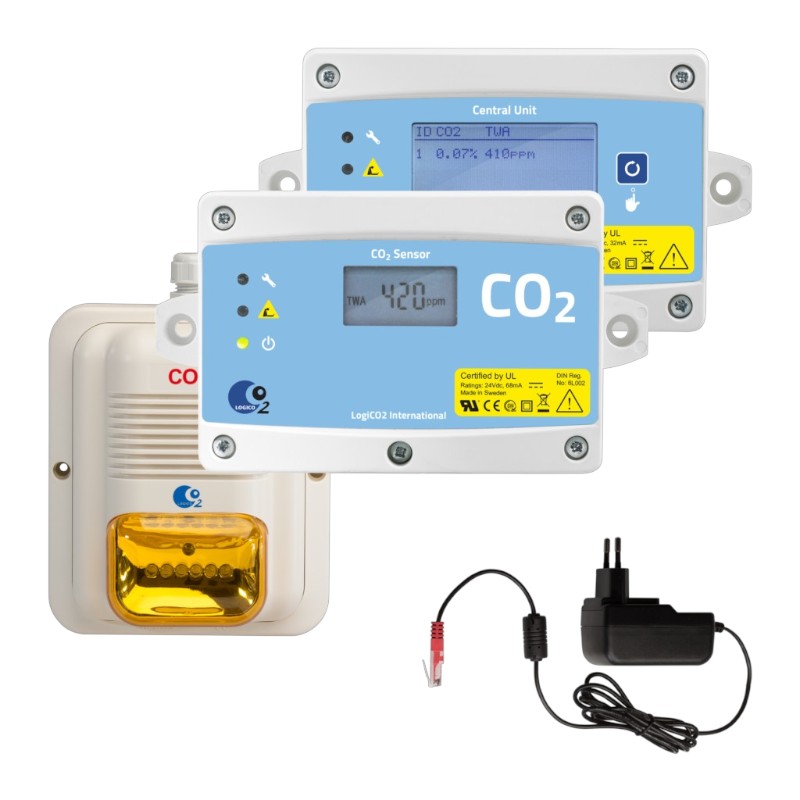

This complete plug and play SET contains a Mk9 CO₂ Sensor with display, a Mk9 Central Unit to display the measured values, a Horn/strobe, cabling and signage. Up to twelve sensors can be connected to the Mk9 CO₂ Safety Detector SET, providing a sophisticated and powerful CO₂ Safety System while still being the most economical and easiest system on the market. All LogiCO2 sensors have automatically calibration as standard. The alarm levels can be changed to any level to comply with all local Safety Codes and legislation.

SPECIFICATIONS

Power consumption: No alarm status: 56 mA. Alarm status: 68 mA (external optional warning lamp not included)
Wiring connections: RJ 45
Digital interface: RS485 serial port MODBUS
Outputs: 2 x transistor output 24V DC, Min 1 mA
Display: LCD
Acoustic signal-strength: 76 dBa (1m) max.
Approval: Manufactured in accordance with DIN 6653-2.

The CO2 Safety System is tested and approved by the German TÜV-Rheinland.

EN 50081-1 / EN 50082-2 /CE.

Certified by UL.

Operating principle: Non-dispersive infrared (NDIR) and thermistor
CO2 measuring range: 0-3 Vol.%
Extended CO2 range: 3-6,7 Vol.%
Gas sampling mode: Diffusion

TWA (Time Weighted Average): Calculation 8 h time span (most recent) with 2 min sample period. (Pat. Pend.)

ACCURACY

Temperature: ±1°C (±1.8°F)
Resolution: 1°C (1.8°F)
CO2: ±5% of measured value plus a pressure dependence of +1.6% of reading per kPa/0.295 InHg at 0-40°C (32-102°F).
Resolution: 0.01 Vol.%
Annual zero point drift: <0.01 Vol.% with automatic self calibration feature
Ambient temperature: -20 to +50°C (-4 to +122°F). Only for indoor use.

GENERAL PERFORMANCE

Compliance with: 2004/108/EG Sensor
Life expectancy: > 15 years
Operating humidity range: 0 to 95% RH (non condensing)
Warm-up time (@ 22°C): 1 min.
Dimensions (LxWxD): 90 x 161 x 38 mm / 3.5” x 6.3” x 1.5”
Ingress protection: IP54 according to TÜV, IP44 according to UL
Overvoltage: Category II
Pollution degree: II
